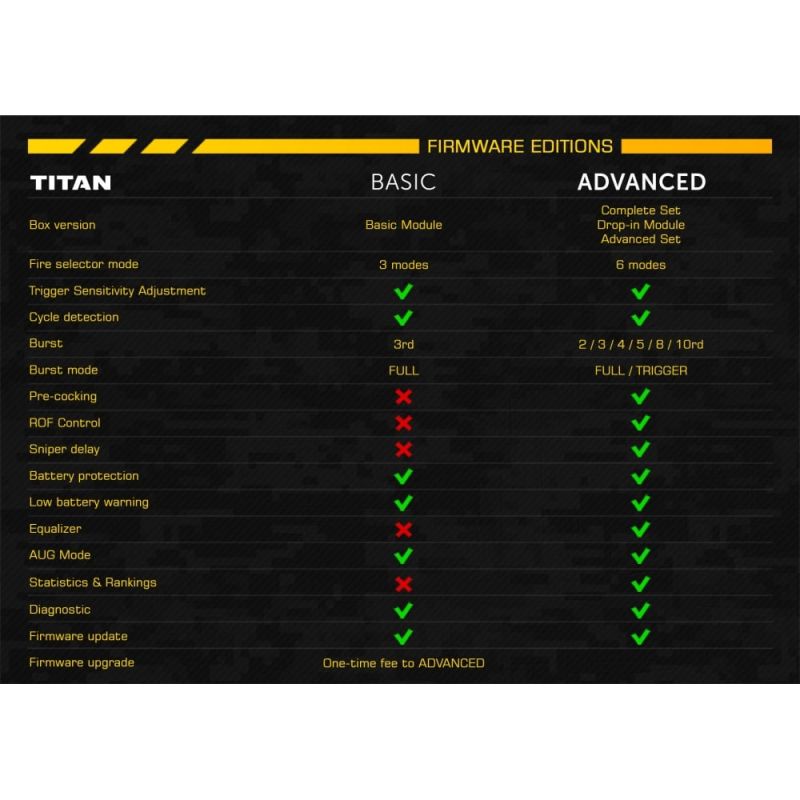

TITAN Basic Firmware gives you the option to adjust:
Fire selector mode
Low battery warning
Get ready for the amazing functions such as:
TRIGGER SENSITIVITY ADJUSTMENT
Five trigger sensors allow you to control trigger sensitivity. You do not have to disassemble your AEG. Just use the Tactical Programming Card or the GATE Control Station™ App to adjust the trigger to your preferences and level of skills.
Thanks to the gear sensor, TITAN precisely detects in which position the cycle should finish. Therefore, even the shortest trigger action produces at least one full cycle.
Thanks to the cycle detection function you get:
Automatic BURST – there is no need to set the burst time. You can set the burst between two and 10 shots;
Automatic PRE-COCKING – Pre-cocking is fully operational in SEMI, BURST and AUTO modes and there is no need to set the pre-cocking boost manually. You can simply set the pre-cocking as high, mid or low;
FULL CYCLE - when the pre-cocking is off, TITAN ensures that the gearbox completes a full cycle. You gain a higher reliability.
Enjoy two stage trigger. Activate AUG Mode and set two different trigger sensitivities. Pulling the trigger slightly produces SEMI or BURST fire and pulling the trigger further produces BURST or AUTO fire (depending on the fire selector mode).
BATTERY PROTECTION (gen.2*)
Protection against Over-Discharge of the Battery. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor monitors the battery voltage constantly. When the voltage drops down to a critical level, it will not allow firing.
*TITAN detects the number of cells automatically. There is no need to reprogram TITAN every time you replace the battery.
LOW BATTERY WARNING
When the battery voltage drops to a predefined level, the motor will vibrate at regular intervals.
We have developed an electronic fuse with an accurate current sensor. A combination of current, voltage and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading and short-circuiting. If your airsoft gun becomes jammed, the function protects the motor and battery against damage.
This allows you to quickly check whether the drop-in module is working properly. It helps to locate where the problem lies when anything goes wrong.
Thanks to its special conformal coating, our product is resistant to atmospheric conditions (Military Specification MIL-V-173C).
The product has factory-fitted low-resistance deans-t connectors.
Thanks to the Mini Tamiya Adapters included in the kit, you can smoothly connect the drop-in module to your original (stock) installation.
14.8V LI-PO READY
The drop-in module can be used with batteries up to and including 14.8V LI-PO. The minimum operating voltage is 3V and maximum is 17V.
Make your adventure start more easily with a new product. The quickstart contains basic information and hints.

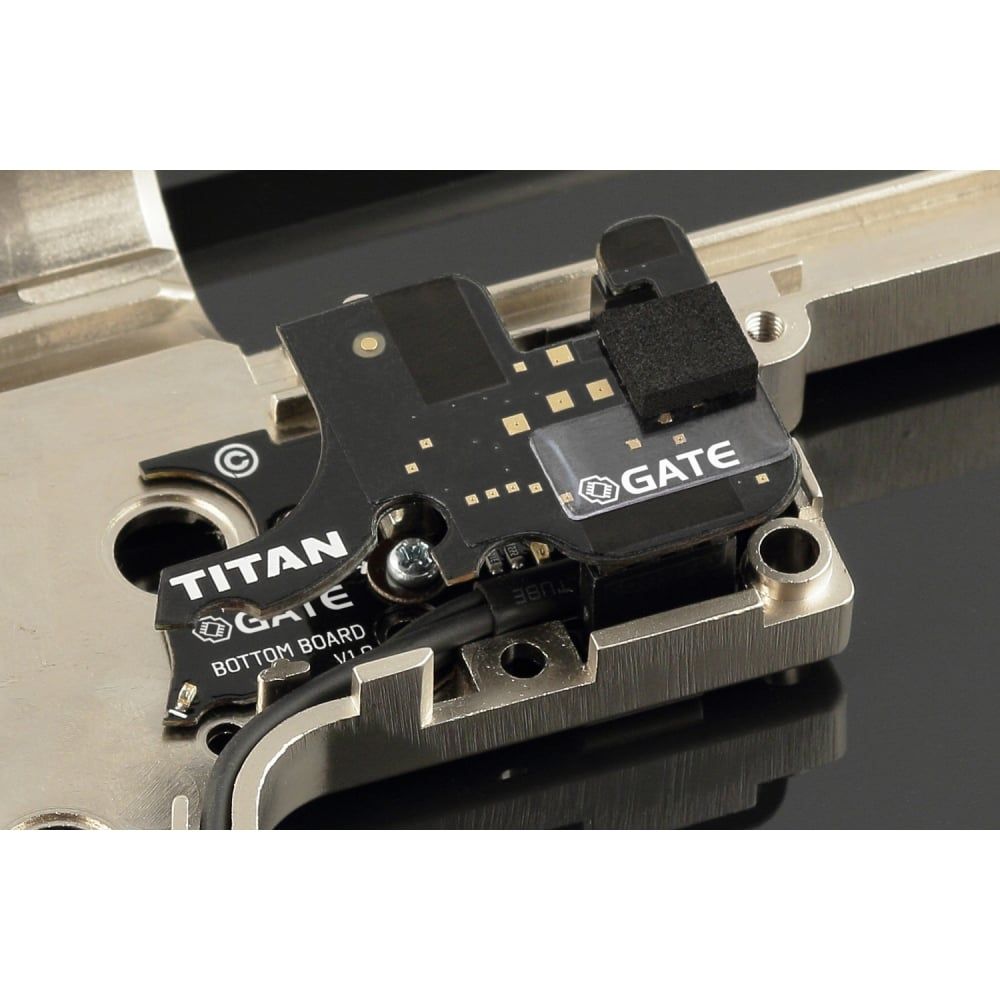

TITAN has no less than eight sensors!
1 gear sensor
2 selector sensors
5 trigger sensors
Thanks to the optical sensors we have eliminated the problem of faulty switches that can occur in competitors' drop-in mosfets. The trigger has no mechanical connections with the PCB. This eliminates mechanical stresses and provides for high reliability.
Thanks to the gear sensor you get:
Automatic BURST – there is no need to set burst time.
FULL CYCLE - when the precocking is off, TITAN ensures that the gearbox always makes full cycles.
You can trust TITAN because:
Every time you pull the trigger gearbox completes the correct cycle. The gears stop exactly where they should. The gearbox works efficiently.
It is protected against short-circuits, overheating and overloading
It protects the battery against over-discharge
It significantly improves battery life, rate of fire, spring life and gearbox reliability (when pre-cocking is off)
It is compatible with the strongest AEG replicas and batteries (ready to use with LiPo 14.8V, 5000 mAh, 60C)
Why TITAN is so special?
It has a user-friendly configuration via the Tactical Programming Card and/or GATE Control Statio
It has option to make firmware updates via the internet
It has innovative optical sensors instead of mechanical switches that can be prone to faults
It replicates a trigger response like in a real gun
It replaces the cut-off lever
It is compatible with DSG and SSG gears
It is compatible with most v2 gearboxes (including cnc) on the market without any modification
The best if you have already bought the TITAN Complete Set but you long for having TITAN in two or more airsoft guns. Then you don’t need the second Tactical Programming Card and the second USB-Link from the complete set. This is also suitable for you if you decide to purchase the Programming Card or USB-Link separately.
Notice: To run and set up the Drop-in Module, it is necessary to have the TITAN Tactical Programming Card or USB-Link.
Basic Kit contents:
TITAN Drop-in Module (rear or front wired) - Basic Firmware
