- WADSN NGAL LA23 Red & IR VCSEL Laser Pointer with IR Illuminator - CNC High Power Version
WADSN

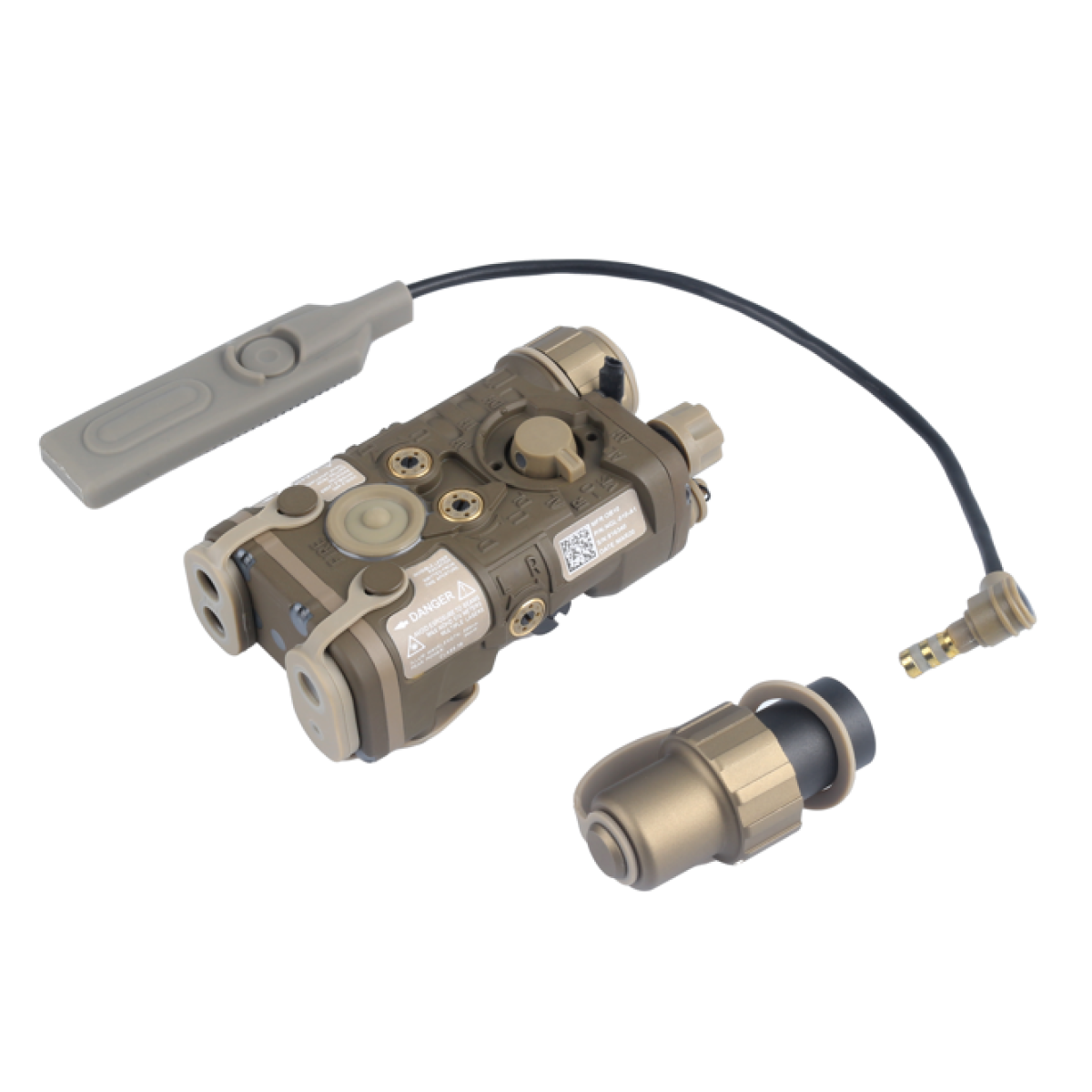

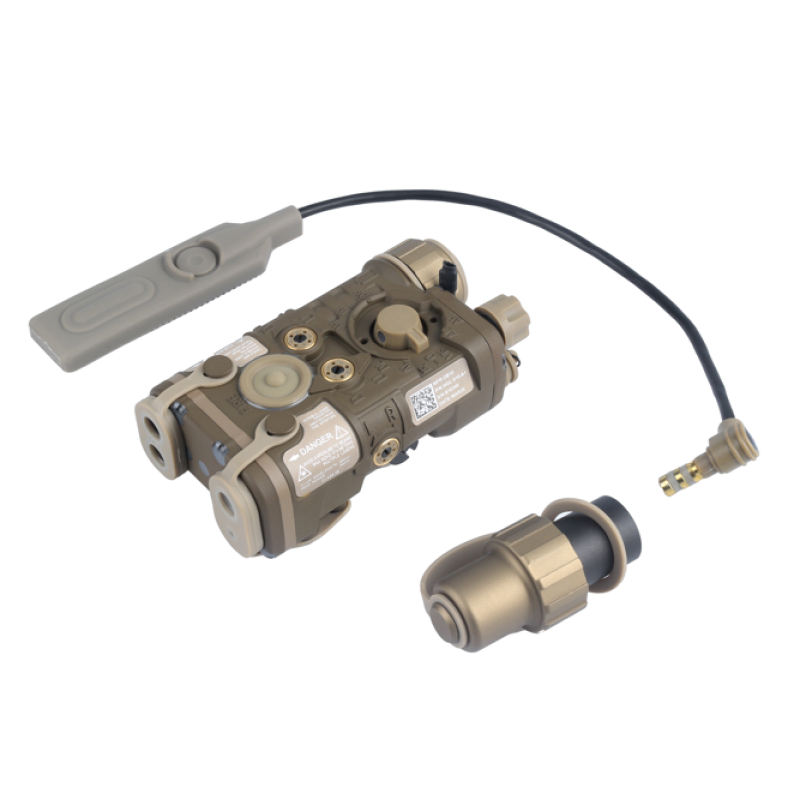

WADSN NGAL LA23 Red & IR VCSEL Laser Pointer with IR Illuminator - CNC High Power Version
Code: WY284-DE
Product description
WADSN NGAL LA23 VCSEL Tactical Laser Sight – IR & Visible Aiming Laser with IR Illuminator
Upgrade your low-light and night vision operations with the WADSN NGAL LA23 VCSEL Interface Laser Sight, a rugged, ultra-compact replica of the military-grade Next Generation Aiming Laser (NGAL). This advanced tactical laser sight combines high-power VCSEL technology with co-aligned visible and IR lasers plus a variable IR illuminator, delivering superior beam uniformity and enhanced situational awareness for professional use, airsoft, training, and tactical applications.
Built with a durable CNC aluminium alloy housing, the NGAL VCSEL LA23 is shockproof (rated to withstand 7.62 recoil and higher), waterproof to IPX7, and engineered for extreme conditions including rain, temperature shocks, and heavy vibration. Its lightweight design (under 165g with remote switch) and compact dimensions (3.6" L × 2.0" W × 1.25" H) make it ideal for rifles, carbines, and Picatinny rail systems without adding unnecessary bulk.
Key Features & Specifications:
- Advanced VCSEL IR Illuminator — Provides a highly uniform near-infrared beam (up to 150mW high / 77mW+ illumination) with adjustable divergence from tight spot to wide flood for maximum versatility.
- Co-aligned Visible & IR Aiming Lasers — Red or Green visible laser (up to 40mW high) paired with powerful 850nm IR laser (up to 50mW high) for day and night use.
- Multiple Power Modes — High / Medium / Low output settings for visible laser, IR laser, and IR illuminator.
- Night Vision Compatible — Works seamlessly with all generations of NVGs (Gen 1–4) for covert operations.
- Intuitive Controls — Mode selector, independent adjusters for aim and illuminator, remote switch compatible (LA23 plug / Crane-style), and sleep mode for battery conservation.
- Battery Powered — Uses 1x CR123A or AA battery (not included), with up to 2+ hours runtime in dual high mode.

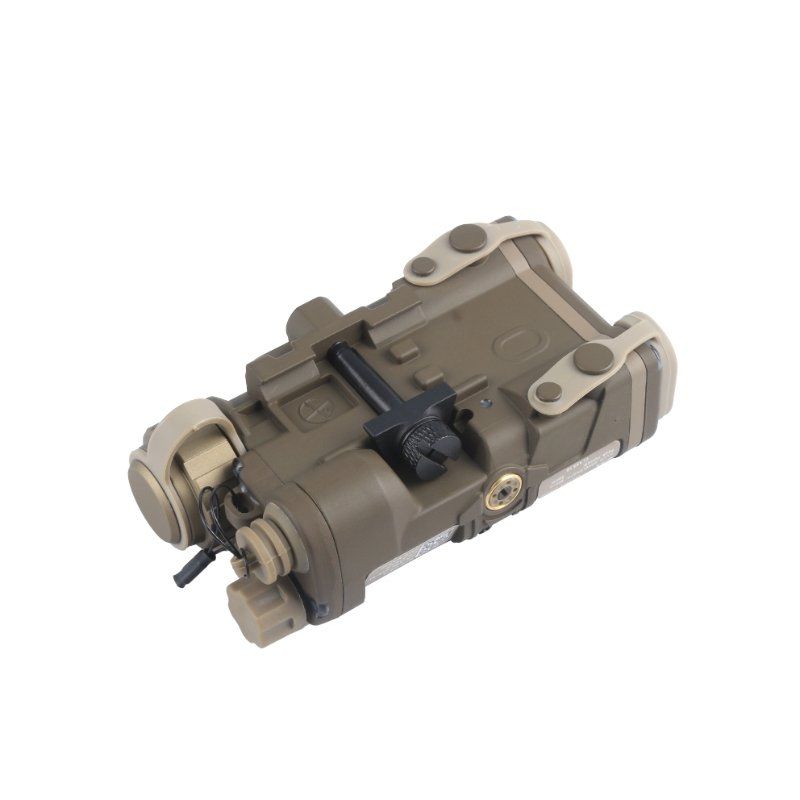

- Mounting — Secure Picatinny / MIL-STD-1913 rail mount with excellent zero retention.
Available in multiple configurations (High, Mid, Low power versions), this VCSEL laser sight features options like red visible laser, IR aiming laser, and IR illuminator flood light.
Perfect for IR laser sights, night vision laser, PEQ-15 style devices, DBAL alternatives, airsoft tactical laser, real steel aiming laser, CQB and military simulation. The high-efficiency VCSEL design ensures a clean, even illuminator beam without hot spots, giving you a clear advantage in complete darkness.
Product Highlights:
- VCSEL technology for uniform IR illumination
- Visible red/green laser + 850nm IR laser + adjustable IR illuminator
- IPX7 waterproof and shockproof construction
- Ultra-compact & lightweight tactical design
- Compatible with all NVGs and Picatinny rails
Brand: WADSN
Model: NGAL LA23 VCSEL
VCSEL vs. Standard LED / Edge-Emitting Laser
1. Beam Shape & Uniformity (Most critical for IR illuminators)
- VCSEL: Circular, symmetric, low-divergence beam with highly uniform intensity (no hot spots or speckle). Produces a clean, even flood under night vision.
- LED: Wide-angle, diffuse Lambertian pattern (very broad and uneven).
- Edge-Emitting Laser (EEL): Elliptical/asymmetric beam, often with astigmatism and higher divergence in one axis.
2. Main Benefits of VCSEL Technology
| Benefit | VCSEL Advantage | Standard LED | Edge-Emitting Laser (EEL) |
|---|---|---|---|
| Beam Uniformity | Excellent – smooth, speckle-free illumination | Poor – diffuse & uneven | Moderate – can have modes/hot spots |
| Beam Shape | Circular & symmetric (easy to collimate/focus) | Hemispherical (very wide) | Elliptical & astigmatic |
| Divergence | Low & controlled (better throw & control) | Very high (lots of spill) | Asymmetric (different in X/Y axes) |
| Efficiency & Power | Higher wall-plug efficiency, lower heat | Lower efficiency | Good but higher threshold current |
| Temperature Stability | Minimal wavelength shift (~0.07 nm/°C) | Larger shift | Noticeable shift |
| Spectral Width | Narrow (better with NVG filters) | Very broad | Narrow but can vary |
| Manufacturing | Wafer-level testing, easy 2D arrays, lower cost | Simple but less precise | More complex dicing & testing |
| Eye Safety & Reliability | Better distributed power, no catastrophic damage | Safe but inefficient | Higher risk of facet damage |
| Tactical Performance | Cleaner IR flood, less bloom, better NVG clarity | Flashlight-like spill | More "laser-like" with artifacts |
3. Why VCSEL Wins in Tactical Laser Sights / IR Illuminators
- Cleaner illumination under night vision goggles (Gen 1–4) — no ugly speckle or hot spots that obscure targets.
- More even flood from spot to wide angle, improving situational awareness in CQB or long-range scanning.
- Lower power consumption & heat — longer battery life in compact devices like the NGAL.
- Better co-alignment with visible lasers (red/green) because of the stable circular beam.
- Scalability — arrays of tiny VCSEL emitters create one powerful, uniform beam.
In real tactical use (e.g., the WADSN NGAL LA23 VCSEL), this translates to:
- Sharper target identification at night
- Reduced eye strain and better contrast through NVGs
- More predictable performance across temperatures
