What is an Airsoft MOSFET?
If you’ve been playing airsoft for more than a minute, you’ve probably heard someone say things like, “I installed a MOSFET in my gun” or “Just buy one with a MOSFET already in it,” and for good reason—airsoft MOSFETs have become one of the most popular internal upgrades for AEGs. In simple terms, a softair MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) helps improve how your replica handles electrical power by acting like a smarter, more efficient switch for your battery-to-motor system and your trigger response. Instead of relying heavily on the trigger contacts to manage the electrical load—especially as you push power, run higher-output setups, or use stronger batteries—an airsoft MOSFET reduces electrical wear and can deliver a more responsive, “snappy” feel when you pull the trigger. On many modern airsoft MOSFET units, you can also benefit from programmable features depending on the model, making it not just a performance upgrade, but also a way to tailor how your gun behaves. That’s why airsoft MOSFET installs are often paired with other upgrades like a new hop-up unit, bucking, or hop rubber—because players usually want better accuracy and consistency, while also getting smoother, more reliable performance from their gearbox and trigger system.What is A MOSFET Airsoft?
A MOSFET for airsoft is an internal electrical upgrade designed for AEG (automatic electric gun) airsoft guns. In a basic airsoft AEG, the battery sends power to the motor when you pull the trigger, and the trigger contacts help “switch” that power on and off. As setups get more powerful or use higher-draw batteries, those trigger contacts can wear out faster and sometimes cause inconsistent trigger feel. An airsoft MOSFET fixes this by acting like a smarter, higher-quality switching system—it takes on the job of handling the electrical load more efficiently, which can lead to less heat and arcing at the trigger contacts, improved reliability, and smoother/more consistent trigger response.
On top of that, many airsoft MOSFETs are programmable (depending on the model), letting you adjust how the gun behaves—such as trigger response characteristics and protective features that help guard against electrical issues. That’s why airsoft MOSFETs are so popular: they’re not a “power increase” upgrade like airsoft springs, but they can make your airsoft AEG feel better to shoot, last longer, and perform more consistently, especially alongside other common upgrades like a new hop-up unit, bucking, or stronger battery setup.
How Do Airsoft MOSFETs Work?
An airsoft AEG MOSFETs work by changing how the gun “turns on” power to the motor. In a typical AEG, when you pull the trigger, the trigger contacts complete an electrical circuit and send current from the battery to the gearbox motor. That means the trigger mechanism is doing more work than it really should—especially in builds that draw more current. Over time, this can lead to extra heat, sparking (arcing), worn contacts, and trigger response that feels inconsistent.
With a softair MOSFET installed, the trigger becomes more like a command signal instead of the main power switch. When you pull the trigger, it tells the airsoft MOSFET to activate. The MOSFET then handles the heavy-duty electrical switching itself, doing it faster and more efficiently. The result is usually less wear on the trigger contacts, improved electrical stability, and often a sharper, more responsive trigger feel. Depending on the MOSFET model, it may also include protective electronics (and sometimes programming) to help the system run more reliably and safely under different battery and setup conditions.
How To Install A MOSFET airsoft?
Installing an airsoft MOSFET can be simple—especially if you’ve done an internal upgrade before—but if you’re new to working on AEGs, it’s also one of those tasks where a small mistake can cause wiring problems or damage. Because of that, beginners are often better off having a qualified AEG technician handle the installation, or taking the gun to a trusted shop where someone experienced can do it right the first time. To get started yourself, you’ll need to disassemble the replica carefully: remove the outer shell/receiver parts and take out the gearbox so you can reach the wiring area. This step requires patience—going too fast or not keeping track of parts can turn it into a frustrating build.
Once the gearbox is accessible, you’ll remove internal components (like gears, spring/piston parts, and anything else blocking the wiring space) so there’s room to install the MOSFET safely. A smart move is to take reference photos as soon as the gearbox is opened, so reassembly is much easier later. From there, most airsoft MOSFET units are installed as a “fit-and-wire” upgrade, but you still need to mount it securely and route the cables so they don’t get pinched by the gearbox or interfere with the motor. Double-check the wiring before closing anything up: confirm the battery connector orientation matches your gun’s setup (front-wired systems should route toward the front, rear-wired systems toward the rear), and make sure the motor leads are placed correctly as well. After confirming everything is correct, rebuild the gearbox by putting the internal parts back in the right order, secure the gearbox back into the gun, and then reassemble the outer body. Take your time with every step, and if anything feels unclear, it’s always okay to stop and ask for help.
Can You Remove A MOSFET From An Airsoft Gun?
Yes, you can remove a MOSFET from an airsoft AEG. However, when you take it out, you’ll usually need to rewire the gun back to how it was originally (or replace the MOSFET setup with an alternative wiring arrangement), because the airsoft MOSFET changes how the trigger switches power to the motor. In most cases, if you’re planning to modify or remove it, it’s best to have your wiring sorted correctly to avoid poor trigger response or electrical issues. That said, we recommend sticking with a airsoft MOSFET in your build when possible, since they’re designed to improve reliability, trigger performance, and protect your wiring and trigger contacts.
Learn more about "what is airsoft" in this blog HERE
Airsoft MOSFETs We Recommend

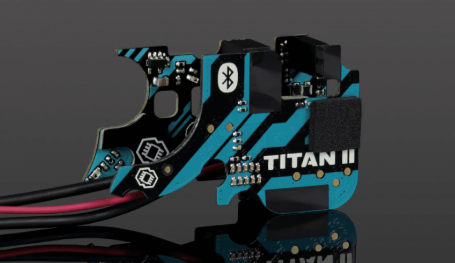

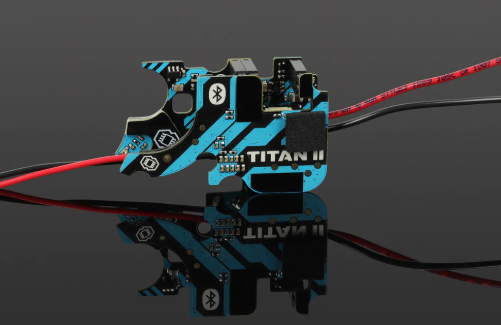

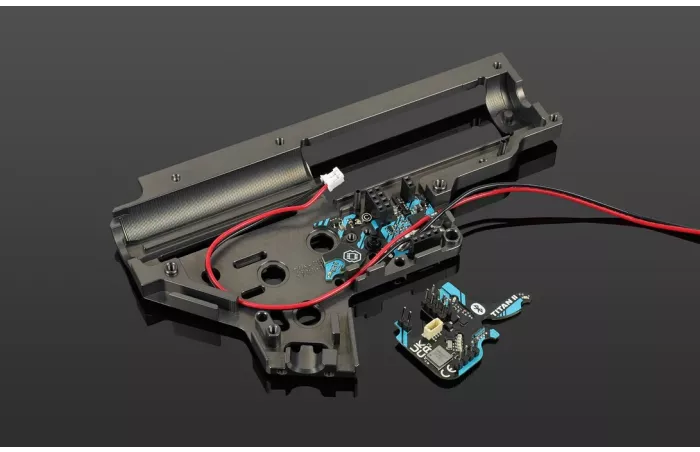

Gate TITAN II Bluetooth for V2 Expert
The TITAN II Bluetooth® (V2 GB) Electronic Trigger Unit (ETU), built with Bluetooth 5.2 for direct setup and monitoring through the GATE ecosystem. It features a precise optical trigger sensor with up to 50 hair-trigger sensitivity levels and an advanced gear sensor that detects both gear teeth and rotation direction for very accurate cycle control. TITAN II also includes mechanical protection for the trigger sensors, ultra-precise current telemetry, pre-cocking control, a built-in voltage boost converter for reliable low-temperature use, and a multifunctional port for accessories like tracer/sensors, bolt-catch, electric magazine, and more. A user-friendly GCS app supports iOS/Android/macOS/Windows and smartwatches (watchOS/Wear OS), and it uses very low power with deep sleep mode for long battery life.

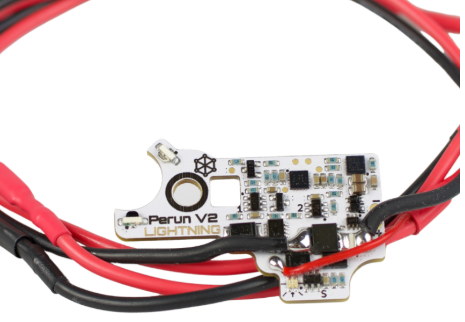

Perun V2 Lightning Trigger Unit
The Perun V2 Lightning MOSFET is an advanced drop-in ETU (electronic trigger unit) that completely replaces mechanical contacts in Tokyo Marui standard V2 gearboxes. Designed for unmatched reliability and lightning-fast response, it’s ideal for high-ROF CQB speedsoft builds, DMRs, and versatile mid-range AEGs, while offering extensive customisation and easy on-the-go adjustments. Using precision optical sensors (for sector gear detection) and magnetic Hall-effect sensors (for trigger and selector positions), the system eliminates moving contact parts to dramatically improve durability—even under high-stress, high-rate-of-fire conditions—and remains compatible with most gearbox, trigger, selector plate, and sector gear combinations, including DSG setups. It also features a fully adjustable trigger control for tuning pull distance from ultra-short speedsoft settings to stock-like travel, with no gearbox disassembly or trigger modifications required—options like Perun’s Clicker V2, Clicker V2 PRO, or Speeder V2 accessories can further refine the feel for a realistic break or even faster response.

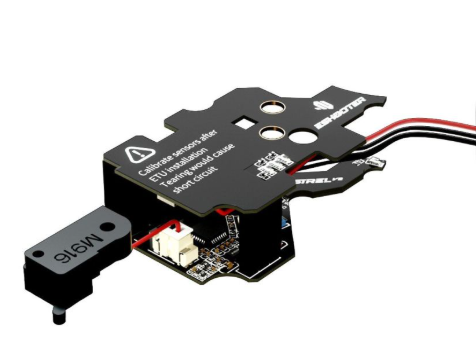

E-Shooter Kestrel Electronic Control Unit
The E‑Shooter Kestrel V2 ETU transforms a standard Tokyo Marui V2 gearbox into a smart, highly responsive airsoft system. With seamless Bluetooth integration through the E‑Shooter app, you can fine-tune firing parameters with detailed control—ranging from precise pre-cocking (100-level accuracy) and custom trigger sensitivity to ROF control and a wide set of selector modes such as SAFE, SEMI, BINARY, BURST, AUG, AUTO, and Sniper mode. It also adds practical and performance-focused upgrades including a magazine shot counter (30–100 rounds), active braking for improved piston control, and cycle detection compatible with DSG, HSG, and standard gears, along with sleep mode to help conserve battery life. For safety and durability, the ETU includes smart protections like battery/low-voltage safeguards, a smart fuse, locked-rotor protection, MOSFET-based power routing, and supports OTA firmware updates for continual improvement. Encased in a compact back-/front-wired unit, the Kestrel V2 is a versatile, rugged upgrade suited to both serious mil-sim builds and competitive setups.

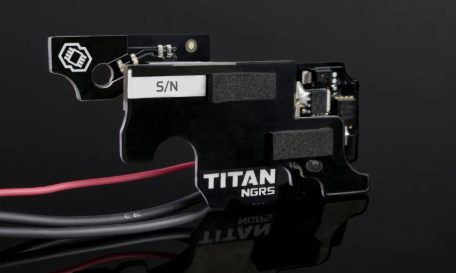

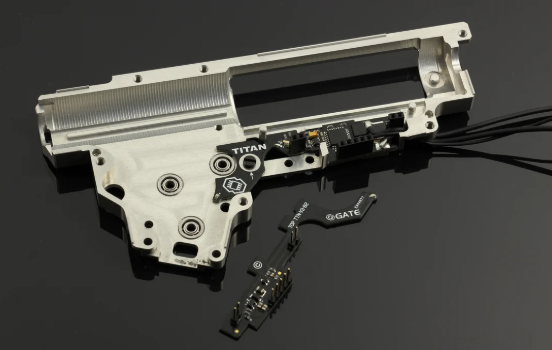

Transform your Tokyo Marui Next Generation AEG into an advanced training system. Adjust your replica and check the stats using a Blu-Link or USB-Link and the GATE Control Station App. TITAN V2 NGRS has a whole new trigger sensor, which allows you to set hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement. The innovative 3rd generation trigger sensor offers you even 460 possible sensitivity settings. Gain a unique tactical advantage thanks to the extremely fast trigger response and lots of other useful functions. Boost your AEG with computerised technology. Give your AEG a new lease of life!
29th July 2026
